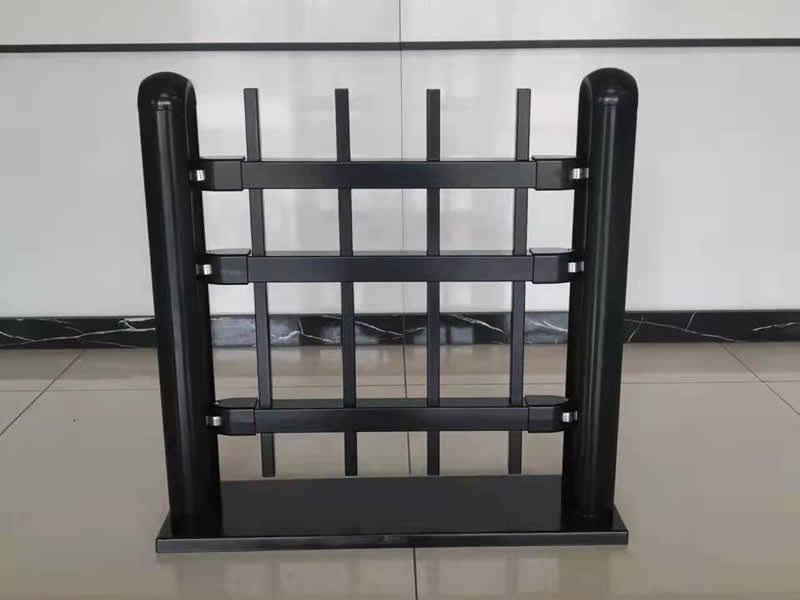

The Symmetrical Concave Post Steel Fence features an elegant symmetrical concave arc design, offering a beautiful curvature when viewed from the front. This unique design ensures a consistent visual effect from both inside and outside the factory boundary.
Manufactured using high-strength DX51D+Z profiles, this fence boasts exceptional durability and a long service life. The material provides superior anti-corrosion properties, making it suitable for long-term use in various environments.

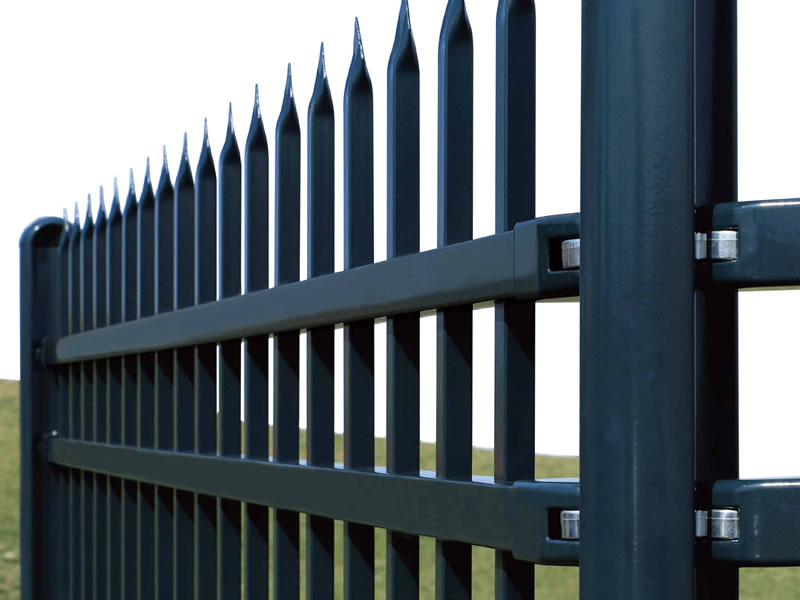

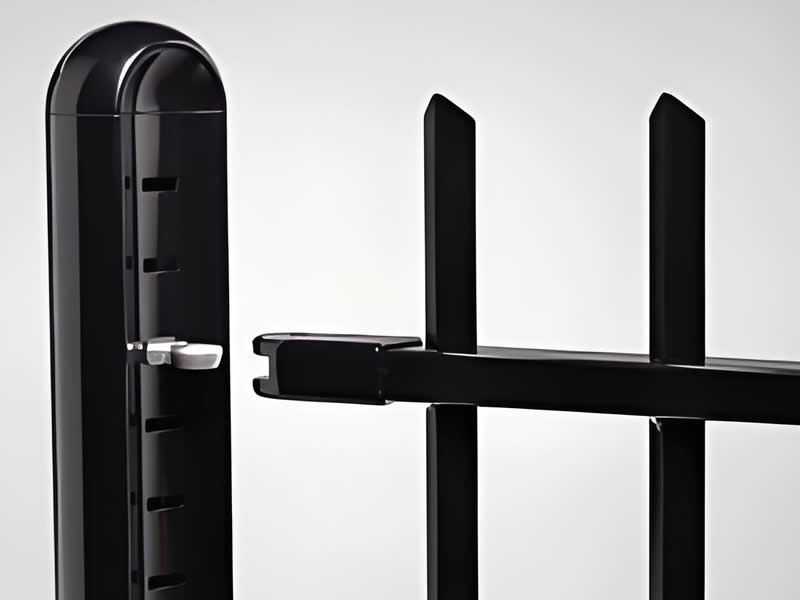

The fence posts and panels are connected using a multi-function connection kit and special stainless steel positioning pins. This design enhances the fence’s anti-theft performance, ensuring the security of the enclosed area.
The fence can be adjusted steplessly to accommodate different angles and slopes, allowing for simple and attractive installation. This flexibility makes it suitable for a variety of landscapes and settings.
The surface of the fence is treated with international advanced nano-ceramic and electrostatic powder coating technology. This results in a smooth and delicate finish, enhancing the fence’s aesthetic appeal and providing additional protection against the elements.
Customers are provided with a ten-year anti-corrosion warranty, ensuring peace of mind and confidence in the product’s longevity and performance.
Specifications and Dimensions
The Symmetrical Concave Post Steel Fence is available in three common sizes to suit different requirements:
- Small X-Type:
- Dimensions: 50 mm x 75 mm x 2.0 mm thick
- Ideal for residential or light commercial applications
- Medium X-Type:
- Dimensions: 60 mm x 90 mm x 2.0 mm thick
- Suitable for medium-security installations, including commercial and industrial sites
- Large X-Type:
- Dimensions: 65 mm x 100 mm x 2.0 mm thick
- Designed for high-security applications, providing robust protection for critical infrastructure and sensitive areas
Applications
The Symmetrical Concave Post Steel Fence is versatile and can be used in a variety of settings, including:
- Industrial and Commercial Properties: Provides a secure and aesthetically pleasing boundary.
- Residential Areas: Enhances property security while maintaining a stylish appearance.
- Public Facilities: Suitable for parks, schools, and other public spaces requiring durable and attractive fencing solutions.
- Critical Infrastructure: Offers high-security protection for sensitive areas such as power plants, military bases, and government buildings.
Customization
Customers can customize the fence to meet specific requirements, including different sizes, colors, and additional security features. This flexibility ensures that the fence can be tailored to fit a wide range of applications and preferences.
General Specifications
| Width of Railing (mm) | Vertical Bar (mm) | Cross Bar (mm) | Rail Number | Height of Railing (mm) | Length of Post (mm) | Post Section Size (mm) | Distance between Posts (mm) |
|---|---|---|---|---|---|---|---|
| 2359 | 20*20*1.2 20*20*1.0 | 40*40*1.5 40*40*1.2 | 2/3 | 1200 | 1700 | 100*65*2.0 75*50*2.0 | 2500 |
| 1500 | 2000 | ||||||
| 1800 | 2300 | ||||||
| 2000 | 2500 | ||||||
| 2859 | 20*20*1.2 20*20*1.0 | 40*40*1.5 40*40*1.2 | 2/3 | 1200 | 1700 | 100*65*2.0 75*50*2.0 | 3000 |
| 1500 | 2000 | ||||||
| 1800 | 2300 | ||||||
| 2000 | 2500 |
| Width of Railing (mm) | Vertical Bar (mm) | Cross Bar (mm) | Rail Number | Height of Railing (mm) | Length of Post (mm) | Post Section Size (mm) | Distance between Posts (mm) |
|---|---|---|---|---|---|---|---|
| 2449 | 20*20*1.2 20*20*1.0 | 40*40*1.5 40*40*1.2 | 2/3 | 1200 | 1700 | 100*75*2.0 | 2500 |
| 1500 | 2000 | ||||||
| 1800 | 2300 | ||||||
| 2000 | 2500 | ||||||
| 2949 | 20*20*1.2 20*20*1.0 | 40*40*1.5 40*40*1.2 | 2/3 | 1200 | 1700 | 100*75*2.0 | 3000 |
| 1500 | 2000 | ||||||
| 1800 | 2300 | ||||||
| 2000 | 2500 |
