The I Post Fence represents a significant innovation in fence post design. Originating from the Betafence company in Belgium, this type of fence post has revolutionized traditional steel column structures by utilizing an H-beam for enhanced strength and structural integrity. Hebei Bonckyfence has further developed this technology to produce high-strength posts through advanced processes such as round tube extrusion and cold drawing.
Structural Characteristics

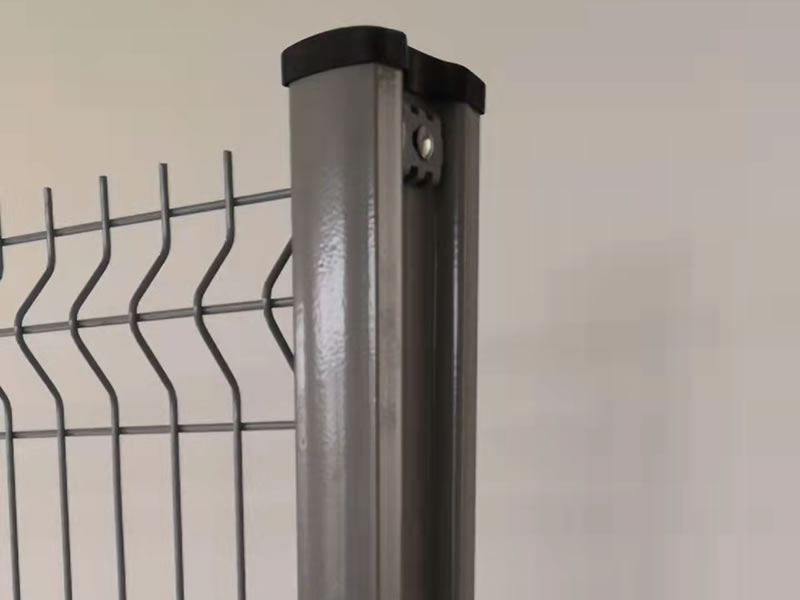

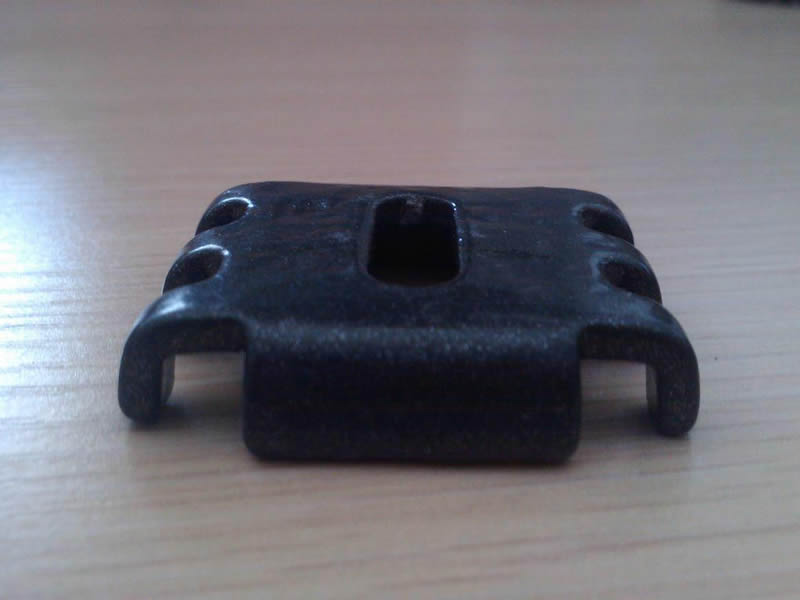

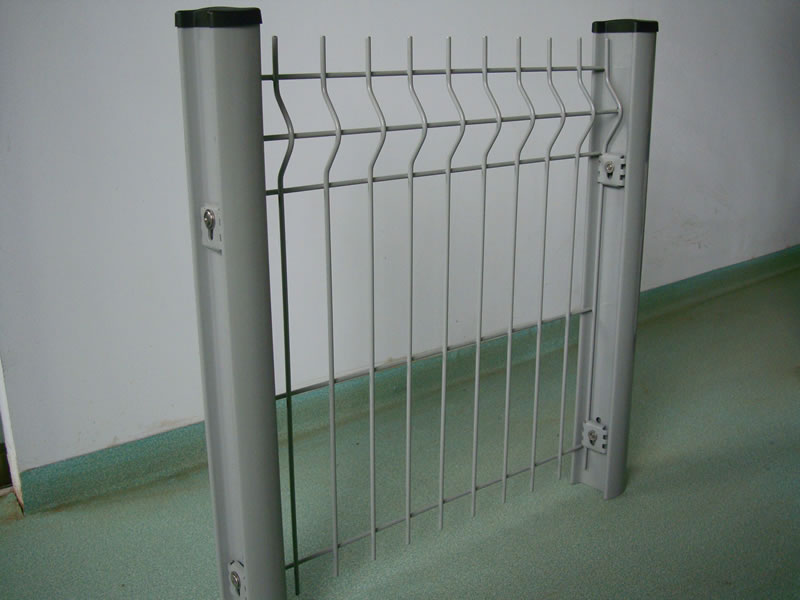

The I Post Fence features an external dimension of 100mm x 55mm with wall thickness options of 1.8mm or 1.5mm. These posts are designed to connect with mesh panels using a special six-claw card and M6 x 50mm stainless steel screws, ensuring a secure and visually appealing installation. The mesh is seamlessly integrated into the middle of the column, creating a straight, clean line without visible screws.
Technological Advancements
The latest generation of industrial columns produced by Hebei Bonckyfence boasts precise shape size ratios and improved structural strength. The 1.8mm wall thickness of these I Posts rivals the strength of 4mm thick square and round tubes. The innovative design allows for deeper reinforcement bends, enhancing the overall stability and durability of the fence.

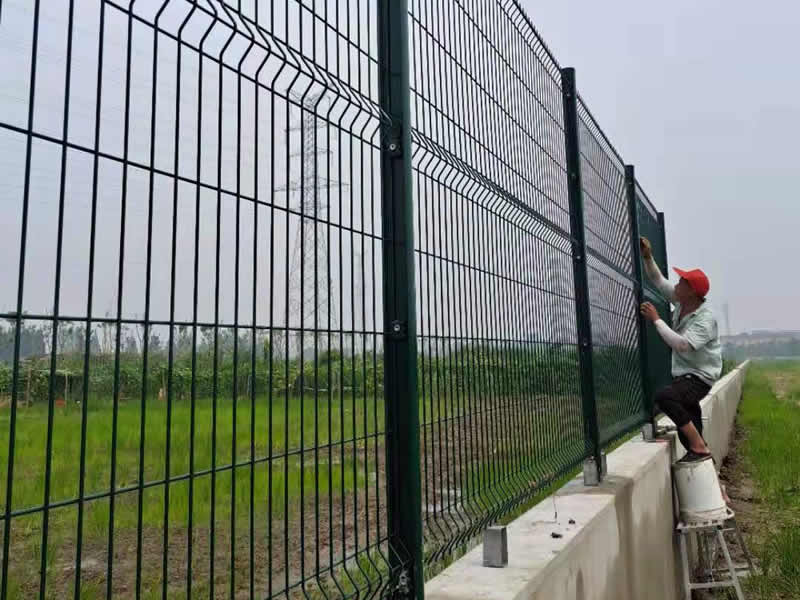

Common Uses
I Post Fences are widely used in various applications, including:
- Bending mesh fences
- Zinc steel fence panels
- Stadium hook fences
- Anti-demolition frame mesh structures These fences are ideal for high-strength site requirements, providing robust and secure boundaries.
Common Specifications and Dimensions
Column Dimensions:
- 55mm x 100mm x 1.8mm
- 55mm x 100mm x 1.5mm
- Customizable lengths
Mesh Specifications:
- Wire Diameter: 4.8mm to 5.0mm after spraying
- Mesh Size: 55mm x 200mm with reinforcement bends
- Reinforcement Bend Depth: 50mm (Patent Number: 201820405947.4)
Fence Dimensions:
- Width: 2560mm
- Reinforcement bends at the top, middle, and bottom
Color Customization
I Post Fences can be customized in a variety of colors according to the RAL color card. Standard color options include:
- Dark Green (RAL6005)
- Gray (RAL7045)
- White (RAL9010)
- Red (RAL3002)
- Black (RAL9005)
- Blue (RAL5002)
